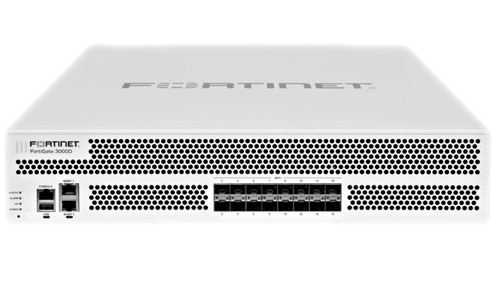

Межсетевой экран Fortigate 3000D

Interfaces and Modules

10 GE SFP+ / GE SFP Slots

16

GE RJ45 Management Ports

2

USB Ports (Server)

1

Console Port

1

Internal Storage

1x 480 GB SSD

Included Transceivers

2x SFP+ (SR 10GE)

System Performance — Enterprise Traffic Mix

IPS Throughput ²

23 Gbps

NGFW Throughput ^{2, 4}

22 Gbps

Threat Protection Throughput ^{2, 5}

13 Gbps

System Performance and Capacity

Firewall Throughput (1518 / 512 / 64 byte, UDP)

80 / 80 / 50 Gbps

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

80 / 80 / 50 Gbps

Firewall Latency (64 byte, UDP)

3 µs

Firewall Throughput (Packet per Second)

75 Mpps

Concurrent Sessions (TCP)

50 Million

New Sessions/Second (TCP)

400,000

Firewall Policies

200,000

IPsec VPN Throughput (512 byte) ¹

50 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

40,000

Client-to-Gateway IPsec VPN Tunnels

200,000

SSL-VPN Throughput

8 Gbps

Concurrent SSL-VPN Users

(Recommended Maximum, Tunnel Mode)

30,000

SSL Inspection Throughput (IPS, avg. HTTPS) ³

15 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

8,000

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

3.5 Million

Application Control Throughput (HTTP 64K) ²

40 Gbps

CAPWAP Throughput (1444 byte, UDP)

22 Gbps

Virtual Domains (Default / Maximum)

10 / 500

Maximum Number of FortiSwitches Supported

256

Maximum Number of FortiAPs (Total / Tunnel Mode)

4,096 / 1,024

Maximum Number of FortiTokens

20,000

Maximum Number of Registered FortiClients

50,000

High Availability Configurations

Active / Active, Active / Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

3.5 x 17.4 x 21.9

Height x Width x Length (mm)

88 x 442 x 555

Weight

37.5 lbs (17.0 kg)

Form Factor

2 RU

AC Power Supply

100–240V AC, 50–60 Hz

DC Power Supply (FG-3000D-DC)

40.5–57V DC

Power Consumption (Average / Maximum)

310 W / 427 W

Heat Dissipation

1457 BTU/h

Redundant Power Supplies

Yes, Hot Swappable

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

50 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;

USGv6/IPv6
