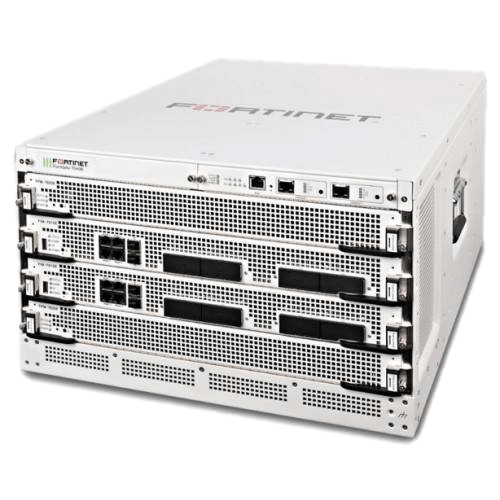

Межсетевой экран Fortigate 7030E

Hardware Specifications

Fortinet Processor Module (FPM) Slots

2

Fortinet Interface Module (FIM) Slots

1

Shelf Manager

1

System Performance and Capacity

Firewall Throughput (1518 / 512 / 64 byte, UDP)

155 / 155 / 155 Gbps

Firewall Latency (64 byte, UDP)

7 μs

Firewall Throughput (Packet per Second)

220 Mpps

Concurrent Sessions (TCP)

160 Million

New Sessions/Sec (TCP)

900000

Firewall Policies

200,000

IPsec VPN Throughput (512 byte)

40 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

16,000

Client-to-Gateway IPsec VPN Tunnels

64,000

SSL-VPN Throughput

15 Gbps

Concurrent SSL-VPN Users (Recommended Maximum)

48,000

IPS Throughput (HTTP / Enterprise Mix) ¹

90 / 60 Gbps

SSL Inspection Throughput ²

50 Gbps

Application Control Throughput ³

65 Gbps

NGFW Throughput ⁴

50 Gbps

Threat Protection Throughput ⁵

35 Gbps

CAPWAP Throughput

N/A

Virtual Domains (Default / Maximum)

10 / 500

Maximum Number of FortiAPs (Total / Tunnel Mode)

N/A

Maximum Number of FortiTokens

20,000

Maximum Number of Registered FortiClients

20,000

High Availability Configurations

Supported

Dimensions

Height x Width x Length (inches)

10.4 x 17.3 x 25.6

Height x Width x Length (mm)

264 x 440 x 650

Weight

134.9 lbs (61.3 kg)
