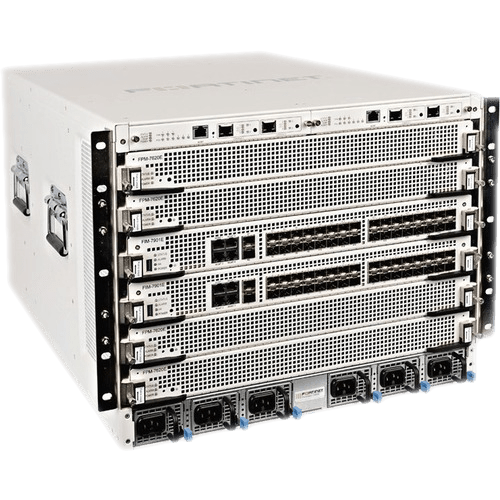

Межсетевой экран Fortigate 7060e

Hardware Specifications

Fortinet Processor Module (FPM) Slots

4

Fortinet Interface Module (FIM) Slots

2

Shelf Manager

2

System Performance and Capacity

Firewall Throughput (1518 / 512 / 64 byte, UDP)

630 / 630 / 340 Gbps

Firewall Latency (64 byte, UDP)

7 μs

Firewall Throughput (Packet per Second)

510 Mpps

Concurrent Sessions (TCP)

320 Million

New Sessions/Sec (TCP)

1.8 Million

Firewall Policies

200,000

IPsec VPN Throughput (512 byte)

100 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

16,000

Client-to-Gateway IPsec VPN Tunnels

64,000

SSL-VPN Throughput

15 Gbps

Concurrent SSL-VPN Users (Recommended Maximum)

48,000

IPS Throughput (HTTP / Enterprise Mix) ¹

360 / 120 Gbps

SSL Inspection Throughput ²

100 Gbps

Application Control Throughput ³

160 Gbps

NGFW Throughput ⁴

100 Gbps

Threat Protection Throughput ⁵

80 Gbps

CAPWAP Throughput

N/A

Virtual Domains (Default / Maximum)

10 / 500

Maximum Number of FortiAPs (Total / Tunnel Mode)

N/A

Maximum Number of FortiTokens

20,000

Maximum Number of Registered FortiClients

20,000

High Availability Configurations

Supported

Dimensions

Height x Width x Length (inches)

13.4 x 17.3 x 25.6

Height x Width x Length (mm)

352.7 x 440 x 650
